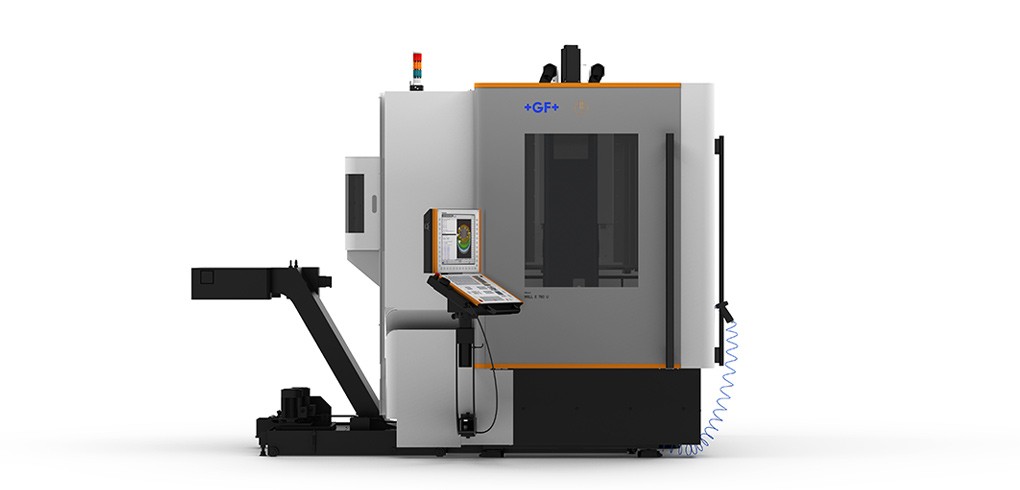

瑞士米克朗MILL E 500 U五軸聯動搖籃立加代理
Main specifications
Travel X, Y, Z
500 x 450 x 400 mm
Swiveling axis tilting axis
-65 /+120 / nx360 °
Working Spindle (40% ED, S6)
12.000/20/88 - 20.000/36/120 rpm / kW / Nm
Feed rate / rapid traverse X, Y, Z
30 m / min
Feed rate / rapid traverse (swiveling, rotating)
17/28 - 32/112 rpm
Tool magazine
DT 30 / CT 60
Automation pallet size number mm piece
UPC (320x320)/7 or Dynafix (350x350)/7
MTS or Delphine (400x400)/5 mm / piece
Automation - Max. load (incl. pallet)
300 - 300/200kg
Control unit - Heidenhain / Fanuc
iTNC 530 HSCI FS / 0i-MD
